TECH LIGHTING 700MOHEL4018S-LED MO-HELIOS 40 18 IN SN-LED LED Lighting Solution

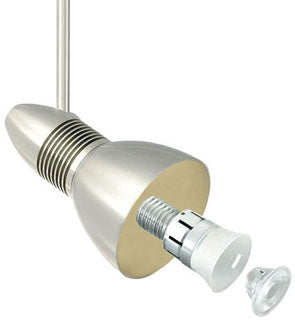

The TECH LIGHTING 700MOHEL4018S-LED MO-HELIOS is a 6-watt directional LED head designed for precision lighting applications. Suitable for indoor dry locations, this lighting component is ideal for electrical distributors and switchgear suppliers seeking efficient, customizable lighting solutions. The head features a field-replaceable LED lamp module with a screw-in base, an aluminum heat sink for thermal management, and adjustable beam direction with 360° rotation and 260° pivot. It supports dimming to 10% with compatible low-voltage electronic or magnetic dimmers.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Candle Power: 25° - 748; 40° - 550
• Dimming: 10%
• Product Weight: 0.29 lbs
• Warranty: 5 years
• Dimensions: Length 2.2" (55 mm)
• ETL Listed for indoor dry locations

Features

• Field-replaceable LED lamp module included
• Aluminum heat sink for effective thermal management
• Adjustable beam with 25° and 40° optics options
• 360° rotation and 260° pivot for precise beam direction
• Compatible with a variety of accessory styles and colors (sold separately)
• Dimmable to 10% with low-voltage dimmers
