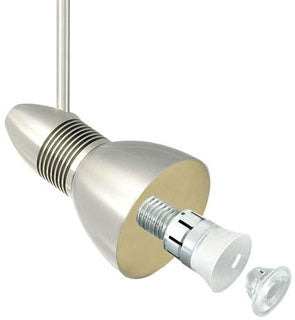

TECH LIGHTING 700MOHEL4012Z-LED MO-HELIOS 40 12 IN BZ-LED LED Directional Head

The Tech Lighting MO-Helios 40 12 IN BZ-LED is a 6-watt directional LED head designed for precise beam control in lighting solutions. Ideal for electrical distributors and switchgear suppliers focusing on wire and cable integration, this fixture head offers a compact, field-replaceable LED module with a screw-in base for easy maintenance. Its aluminum heat sink ensures effective thermal management, supporting long fixture life and efficiency. The head rotates 360° and pivots 260°, enabling versatile beam direction for various indoor lighting applications.

Specifications

• Power Consumption: 6 watts
• Color Temperature: 3000°K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lm/W
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Spread: 40°
• Candle Power: 550 (40° beam)
• Dimming: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Warranty: 5 years
• Product Weight: 0.29 lbs
• UPC: 884655040891
• Manufacturer Part #: 700MOHEL4012Z-LED
• Certification: ETL listed for indoor dry locations

Features

• Field-replaceable LED lamp module included
• Aluminum heat sink for thermal management
• 360° rotation and 260° pivot for beam direction flexibility
• Compatible with a variety of accessory lenses and louvers (sold separately)
• Dimmable to 10% for precise lighting control
