TECH LIGHTING 700MOHEL4003Z-LED MO-HELIOS 40 03 IN BZ-LED Directional LED Lighting Solution

The TECH LIGHTING 700MOHEL4003Z-LED MO-HELIOS is a 6-watt directional LED head designed for precision lighting applications within architectural and commercial environments. This fixture is ideal for electrical distributors and lighting solutions providers specializing in wire and cable integration and switchgear compatibility. It features a field-replaceable LED lamp module with a screw-in base, an aluminum heat sink for thermal management, and offers adjustable beam direction with 360° rotation and 260° pivot for targeted illumination. The product supports dimming to 10% using low-voltage electronic or magnetic dimmers and is suitable for indoor dry locations.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° and 40°
• Candle Power: 25° - 748; 40° - 550
• Dimming Capability: 10%
• Dimensions: Length 3" (A dimension)
• Weight: 0.29 lbs
• Certification: ETL Listed for indoor dry locations
• Manufacturer Part Number: 700MOHEL4003Z-LED

Features

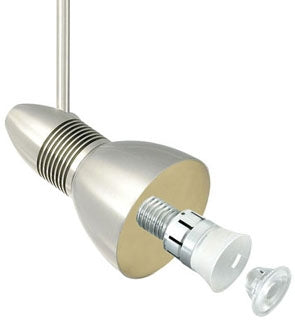

• Field-replaceable LED lamp module included
• Aluminum heat sink for effective thermal management
• 360° rotation and 260° pivot for precise beam direction
• Compatible with a variety of accessory styles and colors (sold separately)
• Dimmable to 10% with low-voltage electronic or magnetic dimmers
• Includes 4" round flush canopy
• Designed for use with Round Glass Shield and Tinkerbell with Integral Lens Holder accessory
• Suitable for professional lighting systems integration in commercial electrical distribution
