TECH LIGHTING 700MOHEL4003S-LED MO-HELIOS 40 03 IN SN-LED LED Lighting Solution

The TECH LIGHTING 700MOHEL4003S-LED MO-HELIOS is a 6-watt directional LED head designed for precise beam control in architectural and commercial lighting applications. Its field-replaceable LED module with a screw-in base allows easy maintenance, while the integrated aluminum heat sink ensures effective thermal management. The head rotates 360° and pivots 260°, enabling versatile beam direction for customized lighting setups. Suitable for use with Tech Lighting’s monorail systems, this product is ideal for electrical distributors and lighting solution providers requiring reliable, efficient LED fixtures.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lm/W
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° and 40°
• Center Beam Candle Power: 25° - 748; 40° - 550
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Product Weight: 0.29 lbs
• Warranty: 5 years
• Dimensions: Length 3 inches (as per 03 length code)

Features

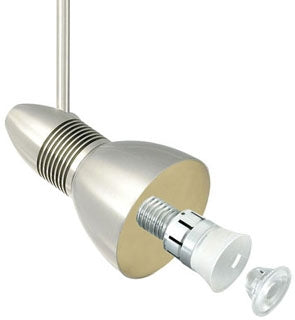

• Field-replaceable LED lamp module included with screw-in base for easy maintenance
• Aluminum heat sink for effective thermal management
• 360° rotation and 260° pivot for flexible beam direction
• Compatible with a variety of accessory styles and colors (sold separately) for customization
• Dimmable to 10% with compatible low-voltage dimmers
• ETL listed for indoor dry locations
