TECH LIGHTING 700MOHEL2524S-LED MO-HELIOS 25 24 IN SN-LED Directional LED Head

The TECH LIGHTING 700MOHEL2524S-LED MO-HELIOS is a 6-watt directional LED head designed for precise beam control in lighting solutions. It is suitable for use with monorail and monopoint systems, providing versatile applications in architectural and commercial lighting. This LED head is compatible with various accessory styles and colors, allowing customization for different lighting environments. Ideal for electrical distributors and switchgear suppliers focusing on advanced wire and cable lighting components.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index: >85 CRI
• Rated Average Life: >30,000 hours to L70
• Center Beam Candle Power: 25° - 748; 40° - 550
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Warranty: 5 years
• Product Weight: 0.29 lbs
• Dimensions: Length 2.2" (55 mm)
• UPC: 884655040853
• Manufacturer Part #: 700MOHEL2524S-LED
• ETL Listed for indoor dry locations

Features

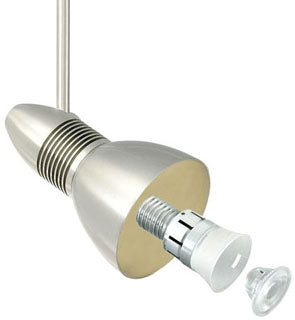

• Field-replaceable LED lamp module with screw-in base to minimize waste
• 360° rotation and 260° pivot for precise beam direction
• Aluminum heat sink for effective thermal management
• Available with 25° and 40° optics for beam spread options
• Compatible with a wide range of accessory lenses and louvers (sold separately)
• Dimmable to 10% for flexible lighting control
• Includes 4" round flush canopy
