TECH LIGHTING 700MOHEL2506Z-LED MO-HELIOS 25 06 IN BZ-LED Directional LED Head

The TECH LIGHTING 700MOHEL2506Z-LED MO-HELIOS is a 6-watt directional LED head designed for precision lighting applications. Suitable for indoor dry locations, this fixture is ideal for electrical distributors and lighting solutions providers seeking high-performance wire and cable compatible LED components. The head features 360° rotation and 260° pivot for flexible beam direction, making it a versatile option for custom lighting configurations. It is compatible with a variety of accessories to tailor the lighting effect and is dimmable to 10% with low-voltage electronic or magnetic dimmers.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° and 40°
• Candle Power: 25° - 748; 40° - 550
• Dimming: 10%
• Dimensions: Length 2.2" (55 mm)
• Warranty: 5 years
• ETL Listed for Indoor Dry Locations

Features

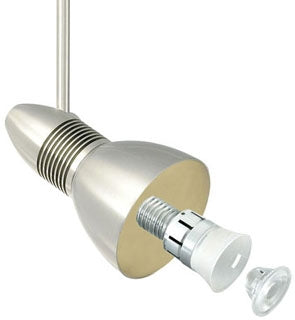

• Field-replaceable LED lamp module with screw-in base for easy maintenance
• Aluminum heat sink for effective thermal management
• Head rotates 360° and pivots 260° to direct the beam precisely
• Compatible with various accessory styles and colors (sold separately)
• Dimmable with low-voltage electronic or magnetic dimmers
• Minimizes waste by retaining heat sink with fixture when replacing LED module
