TECH LIGHTING 700MOHEL2506S-LED MO-HELIOS 25 06 IN SN-LED Directional LED Head

The TECH LIGHTING 700MOHEL2506S-LED MO-HELIOS is a 6-watt directional LED head designed for precision beam control in lighting solutions. Ideal for use in monorail lighting systems, this LED head is field-replaceable with a screw-in base that minimizes waste by retaining the heat sink with the fixture. It offers versatile beam direction with 360° rotation and 260° pivot capability, suitable for architectural and display lighting applications. This product is relevant for electrical distributors and switchgear suppliers focusing on advanced lighting components.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index: >85 CRI
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° and 40°
• Candle Power: 25° - 748; 40° - 550
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Product Weight: 0.2900 lbs
• Warranty: 5 years
• Dimensions: Length 2.2" (55 mm)
• Finish: Satin Nickel
• ETL Listed for indoor dry locations

Features

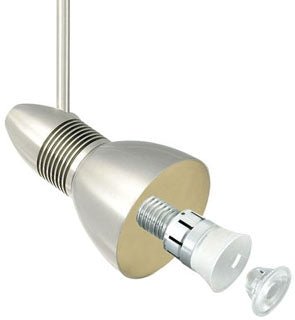

• Field-replaceable LED lamp module with screw-in base
• Aluminum heat sink for effective thermal management
• Head rotates 360° and pivots 260° for precise beam direction
• Compatible with various accessory styles and colors (sold separately)
• Supports lenses and louvers with Round Glass Shield and Tinkerbell accessories
• Dimmable to 10% for flexible lighting control
• Includes 4" round flush canopy
