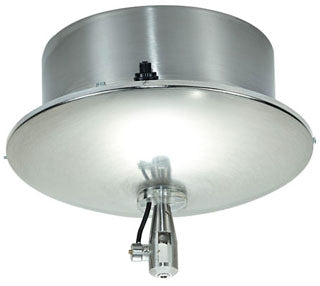

TECH LIGHTING 700MO2SRT50DB MO2 SRT 500W W/DMC BLACK Surface Transformer

The TECH LIGHTING 700MO2SRT50DB is a surface transformer designed for use with Tech Lighting low voltage lighting systems. It is suitable for indoor dry locations and mounts to a standard 4" junction box with a round plaster ring, provided by an electrician. This transformer supports two 120V inputs and outputs 12V at a maximum wattage of 500W, compatible with low-voltage magnetic dimmers and dimming coils. It is ideal for electrical distributors and lighting solutions requiring reliable power conversion for wire and cable installations in switchgear applications.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700MO2SRT50DB
• Input Voltage: 2 x 120V
• Output Voltage: 12V
• Wattage: 500W
• Compatible Dimmer Type: Low-voltage magnetic
• Compatible Dimming Coil: Included
• Mounting: Standard 4" junction box with round plaster ring
• Product Weight: 20.4 lbs
• Finish Color: Black
• UPC: 756460616441

Features

• ETL listed for indoor dry locations
• Built-in dimming coil for low-voltage magnetic dimmers
• Supports up to two low-voltage magnetic transformers
• Includes installation hardware and mounting crossbar
• Designed for use with Tech Lighting low voltage lighting systems only
• Installation requires qualified electrician, complies with local electrical codes
• Must be connected to the same electrical phase for all 120V wires
• Compatible with standard 4" junction box installations
