TECH LIGHTING 700MO2SORGS MO2 OUTRIGGER SUPPORT S.NKL - Two-Circuit MonoRail Support

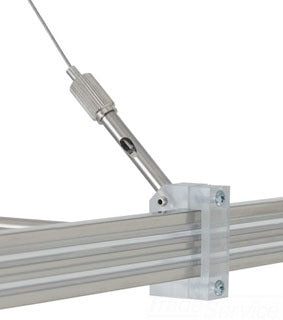

The TECH LIGHTING 700MO2SORGS MO2 Outrigger Support in Satin Nickel finish is designed for use with the Tech Lighting Two-Circuit MonoRail system. It serves as a structural support component that extends from the wall to support the rail, ensuring stability and proper installation of lighting track systems. This product is suitable for indoor dry locations and is ideal for electrical distributors and lighting solution providers requiring reliable support hardware for wire and cable track installations.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part Number: 700MO2SORGS
• Finish: Satin Nickel
• Product Weight: 0.6 lbs
• Suitable Location: Indoor dry locations only
• Compatibility: Use exclusively with Tech Lighting Two-Circuit MonoRail system
• Certification: ETL Listed (indoor use)

Features

• Extends 36 inches from wall to support the rail
• Field-cuttable support rod for custom sizing
• Includes aircraft cable and cable post for secure mounting
• Adjustable cable post angle with recommended minimum 30° to properly lock aircraft cable
• Plastic connector for secure rail joint integration
• Set screw connections ensure tight and conductive assembly
• Trim excess aircraft cable for neat installation appearance
