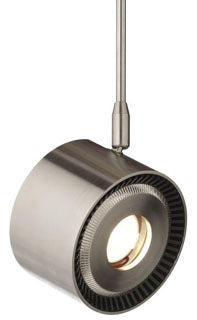

TECH LIGHTING 700MO2ISO8305006S-LED MO2-ISO HD 830K 506IN SN-LED LED Lighting Solution

The TECH LIGHTING 700MO2ISO8305006S-LED is a precision-engineered 16 watt directional LED head designed for advanced lighting applications. Ideal for electrical distributors and lighting solution providers, this fixture features a durable machined aluminum housing with an extruded aluminum heat sink that ensures efficient thermal management. It is suitable for use in indoor dry locations and integrates seamlessly into wire and cable setups or switchgear systems requiring focused, high-quality illumination.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• Color Rendering Index (CRI): 80+
• Beam Spreads: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Product Weight: 1.58 lbs
• Warranty: 5 years
• Dimensions: 5.06 inches length (506IN)
• Finish: Satin Nickel
• ETL Listed for indoor dry locations

Features

• 360° rotation and 90° pivot for precise beam direction
• Easily field-replaceable and upgradeable LED with solderless connector
• Heat sink remains with fixture to minimize waste at lamp module end-of-life
• Integrated lens holder accommodates one lens or louver (sold separately)
• Constructed from machined aluminum housing and extruded aluminum heat sink for durability and thermal efficiency
• Compatible with low-voltage electronic or magnetic dimmers
