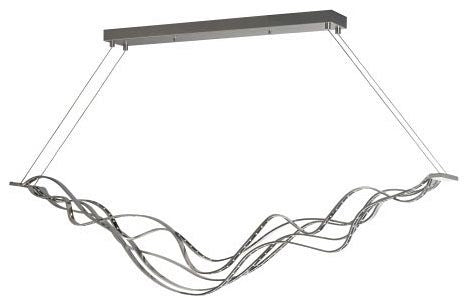

TECH LIGHTING 700LSSURGS-LED277 LS-SURGE LINEAR SUSP SN-LED277 Lighting Fixture

The Tech Lighting 700LSSURGS-LED277 Surge Linear Suspension is a modern integrated LED lighting solution designed for commercial and residential applications. Suitable for damp locations, this fixture is ideal for electrical distributors and lighting solutions providers seeking contemporary suspended lighting. It supports 277V electrical systems and can be installed on sloped ceilings up to 45°, making it versatile for various architectural requirements.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700LSSURGS-LED277
• Voltage: 277V
• Integrated LED lighting
• Total Power Consumption: 52W
• Delivered Lumens: 2694
• Color Temperature (CCT): 3000K
• Color Rendering Index (CRI): 80
• Dimmability: Compatible with most LED ELV and Triac dimmers; 277V version not dimmable
• Dimensions (HxLxW): 12" x 54" x 5.9" (inches)
• Adjustable suspension length: 25.3" minimum to 157.3" maximum
• Weight: 22 lbs
• Includes 12 feet of field-cuttable satin cable
• Canopy width: 28.5"
• Suitable for mounting on 4" square or octagon electrical boxes
• Suitable for damp locations

Features

• Integrated LED for energy-efficient lighting
• Adjustable cable length for customizable suspension height
• Installation flexibility with support for sloped ceilings up to 45°
• Constructed with satin nickel finish components
• ETL listed for safety and compliance with electrical codes
• Designed for easy installation with included mounting plate and hardware
