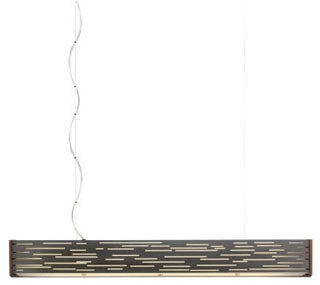

TECH LIGHTING 700LSRVLSM-CF277 REVEL LINEAR SUSPENSION - Fluorescent Lighting Solutions

The TECH LIGHTING 700LSRVLSM-CF277 REVEL Linear Suspension is a fluorescent lighting fixture designed for architectural and commercial lighting applications. This linear suspension fixture features a sleek metal surface with laser-cut horizontal slots that allow light to diffuse through an inner white diffuser, providing a glare-free wash of light. It is suitable for damp locations and ideal for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking modern, efficient lighting options.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700LSRVLSM-CF277
• Product Weight: 8 lbs
• Dimensions: 50.5" length x 5.5" width x 5.1" height (1283mm x 140mm x 130mm)
• Maximum Drop Length: 96" (adjustable)
• Lamp Type: Two 54 Watt high output T5 linear fluorescent lamps
• Voltage: 277V Fluorescent (-CF277)
• Finish Options: Satin Nickel with Walnut Wood, Antique Bronze with Walnut Wood, Gloss Black with Walnut Wood, Gloss White with Maple Wood
• Suitable for damp locations
• Includes extra center power feed canopy and side post for applications with a centered junction box

Features

• Laser-cut metal surface with horizontal slots for dynamic light diffusion
• Inner white diffuser and bottom glass diffuser provide glare-free illumination
• Optional wood end caps add warmth and aesthetic versatility
• Adjustable suspension cables for customizable hanging height
• Designed for straightforward installation with one or two cable post configurations
• Includes canopy and mounting hardware compatible with standard electrical boxes
• Energy-efficient fluorescent lighting with easy lamp replacement
