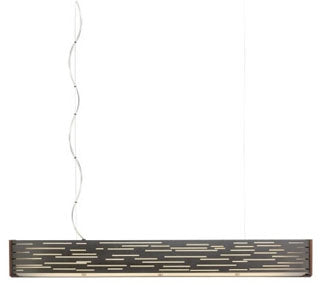

TECH LIGHTING 700LSRVLBW-CF277 REVEL LINEAR SUSPENSION Black - Lighting Solutions

The TECH LIGHTING 700LSRVLBW-CF277 Revel Linear Suspension is a dramatic fluorescent lighting fixture designed for commercial and residential applications requiring sleek, modern illumination. This linear suspension fixture features a laser-cut metal surface with horizontal slots that allow light to diffuse through an inner white diffuser, providing a glare-free wash of light. Ideal for electrical distributors and lighting solution providers, it supports high output T5 linear fluorescent lamps and is compatible with wire and cable suspension systems. The fixture is suitable for damp locations and includes an extra center power feed canopy and side post for installations with a centered junction box.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700LSRVLBW-CF277
• Product Weight: 8.0 lbs
• UPC: 884655239141
• Lamp Type: Two 54 Watt high output T5 linear fluorescent lamps
• Voltage: 277V Fluorescent
• Maximum Drop Length: 8 feet (adjustable)
• Dimensions: 50.5" length x 5.5" height x 5.1" width
• Shade Color: Gloss Black
• Trim Color: Walnut Wood
• Suitable for damp locations

Features

• Laser-cut metal surface with horizontal slots for dynamic light diffusion
• Inner white diffuser and bottom glass diffuser for glare-free illumination
• Optional wood end caps available to complement design aesthetics
• Includes extra center power feed canopy and side post for flexible installation
• Adjustable aircraft cable suspension system for precise mounting height
• Designed for easy lamp replacement with secure diffuser caps
• Certified for safe installation with minimum 90°C supply conductors
