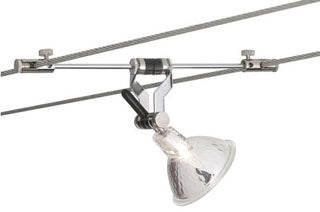

TECH LIGHTING 700KPIV01S KL PIVOT 1.0IN MR16 Satin Nickel

The TECH LIGHTING 700KPIV01S is a low-voltage pivot head designed for the Kable Lite system, suitable for precise lighting applications in indoor dry locations. This lighting solution supports MR16 lamps up to 75 watts (lamp not included) and features a satin nickel finish for aesthetic integration. Its compact design is ideal for electrical distributors and switchgear suppliers focusing on wire and cable-based lighting systems.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700KPIV01S
• Product Weight: 0.1000 lb
• Dimensions: 1 in (W) x 2 in (H) x 1 in (L)
• Finish: Satin Nickel
• Compatible Lamp: Low-voltage MR16 up to 75 watts (not included)
• Pivot Movement: Head swivels 220°, 1" version pivots on vertical axis only
• Suitable Location: Indoor dry locations only
• UPC: 756460584269

Features

• Designed exclusively for the Kable Lite cable lighting system
• Compact pivot head allows precise directional lighting
• Easy installation with fixture connectors and piercing screws for secure cable attachment
• Compatible with multiple optical controls and accessories including backlight shields, barndoors, glass shields, louvers, and lens holders (sold separately)
• ETL listed for safety compliance
• Halogen lamp installation requires no tools, reducing risk of damage during relamping
