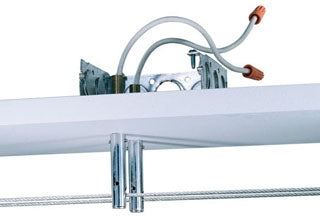

TECH LIGHTING 700KPFSO01S KL Power Feed Standoff - Electrical Distributor Component

The TECH LIGHTING 700KPFSO01S KL Power Feed Standoff is designed for feeding low voltage power through walls or ceilings in indoor dry locations. This component is essential for electrical distributors and lighting solutions providers looking to extend power from a single feed remote transformer to Kable Lite cable runs, ensuring safe and accessible power distribution within architectural spaces. It supports mounting on walls or ceilings that are accessible from both sides, facilitating integration within switchgear and wire and cable installations.

Specifications

• Manufacturer Part #: 700KPFSO01S
• Product Weight: 0.4000 lbs
• Suitable for indoor dry locations only
• Mounting: Wall or ceiling installation
• Minimum cable separation: 3.5 inches
• Clearance hole size: 7/16 inch for power feed nipple, 9/16 inch for plastic bushing
• Compatible with Kable Lite cable systems
• Power feed through accessible walls or ceilings

Features

• Rigid standoff design with power feed capability
• Enables power feed from remote transformer through walls or ceilings
• Includes threaded nipple and set screw for secure cable installation
• Installation requires electrical box on back side of wall or ceiling for wiring connections
• Allows for neat and safe routing of low voltage power cables
• Compatible with standard low voltage lighting systems from Tech Lighting
• ETL listed for safety compliance
