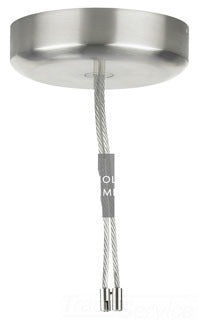

TECH LIGHTING 700KLMRT30ES-LED KL MRT TRAN 300W EL SN-LED Electrical Transformer

The Tech Lighting 700KLMRT30ES-LED is a Kable Lite Mini Surface Electronic Transformer designed for indoor dry locations. It supports low voltage LED lighting systems and is suitable for use with Tech Lighting low voltage lighting only. This transformer enables flexible lighting solutions in interior applications, including general illumination, display, wall washing, and indirect lighting to illuminate vaulted ceilings. It is ETL listed and complies with local electrical codes for safe installation and operation.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700KLMRT30ES-LED
• Product Weight: 2.76 lbs
• Dimensions: 5.3" diameter x 1.4" height (134 mm x 36 mm)
• Finish: Satin Nickel
• Certification: ETL Listed for indoor dry locations
• Compatible with: Tech Lighting low voltage LED lighting systems

Features

• Rotates 360° for versatile installation and lighting direction
• Face down for general illumination, display, and wall washing
• Face up for indirect lighting and vaulted ceiling illumination
• Designed for use with low voltage electronic dimmers only
• Installation requires minimum 90°C supply conductors
• Includes mounting plate for secure attachment to electrical boxes
• Supports direct connection to Kable Lite cables and turnbuckles
• ETL listed ensuring compliance with safety standards
