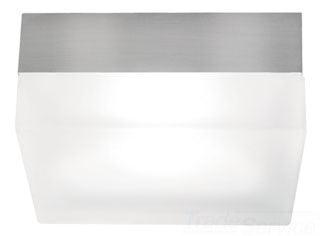

TECH LIGHTING 700FM90LZ-CF277 90 Ceiling Large BZ-CF277 - Compact Fluorescent Ceiling Fixture

The TECH LIGHTING 700FM90LZ-CF277 is a large square-shaped ceiling fixture designed for general lighting applications. It features a glass shade that mounts flush to a plated formed base, suitable for both ceiling and wall mounting. This product is well-suited for electrical distributors and lighting solutions providers looking to offer compact fluorescent lighting options compatible with 277V power systems. The fixture is ADA compliant and rated for wet locations, making it versatile for various commercial and institutional environments.

Specifications

• Manufacturer: Tech Lighting
• Model Number: 700FM90LZ-CF277
• Weight: 8.1 lbs
• Lamp Type: Compact Fluorescent (CF), 2 x 13 watt 2GX7 base twin tube lamps
• Voltage: 277V
• Dimensions (Large): 9" (229 mm) length x 3" (76 mm) height x 11" (279 mm) width
• Mounting: Ceiling or wall mount to 4" square or octagon electrical box
• Finish: Antique Bronze (BZ)
• Compliance: ADA compliant, suitable for wet locations

Features

• Flush mount square glass shade providing general illumination
• Includes electronic ballast for compact fluorescent lamps
• Can be installed with standard 90°C supply conductors
• Easy installation with mounting plate and set screws
• Suitable for commercial and institutional electrical and lighting applications
• Durable plated formed base with antique bronze finish
