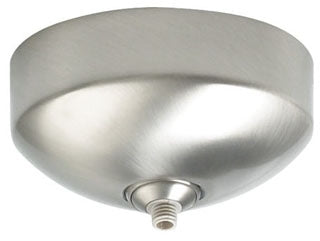

TECH LIGHTING 700FJSF4VZ277 Surface Canopy Lighting Solutions

The TECH LIGHTING 700FJSF4VZ277 is a vaulted surface canopy designed for mounting to a standard 4" junction box with a round plaster ring. It is suitable for indoor dry locations and approved for use at any height above the finished floor. This canopy integrates an electronic transformer housed inside a 2" high, 4.5" diameter dome, providing 277V input and 12V output. It features one FreeJack port for ceiling or wall installation, making it a reliable component for electrical distributors and switchgear suppliers in lighting solutions and wire and cable systems.

Specifications

• Model Number: 700FJSF4VZ277
• Manufacturer: Tech Lighting
• Finish: Antique Bronze
• Voltage: 277V in / 12V out
• Mounting: Standard 4" junction box with round plaster ring
• Transformer: Electronic transformer included inside 2" high, 4.5" diameter housing
• Port: One FreeJack port for ceiling or wall
• Weight: 1.0 lb
• Certification: ETL listed for indoor dry locations

Features

• Vaulted canopy design suitable for ceilings up to 45°
• Compatible with standard incandescent dimmers (non-LED version)
• Includes electronic transformer fitting within junction box for streamlined installation
• Designed for use with FreeJack lighting systems for flexible fixture connection
• Installation requires a minimum 6 cubic inch electrical box volume
• Provides safe and code-compliant wiring with grounding and wire nut connections
