TECH LIGHTING 700FJSF4VZ024 Surface Canopy Lighting Solutions

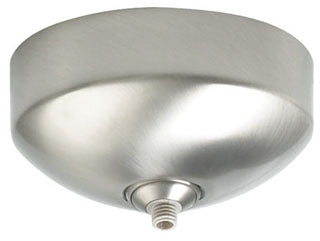

The Tech Lighting 700FJSF4VZ024 is a surface canopy designed for indoor dry locations, ideal for electrical distributors and lighting solutions providers. It mounts to a standard 4" junction box with a round plaster ring (provided by the electrician) and features an integrated electronic transformer within a 2" high, 4.5" diameter housing. This canopy includes one FreeJack port suitable for ceiling or wall mounting, supporting 120V input with 24V output, making it compatible with low-voltage lighting systems.

Specifications

• Manufacturer: Tech Lighting
• Model Number: 700FJSF4VZ024
• Finish: Antique Bronze
• Voltage: 120V in / 24V out
• Mounting: Standard 4" junction box with round plaster ring
• Dimensions: 2" height, 4.5" diameter housing
• Weight: 1.0 lb
• Certification: ETL listed for indoor dry locations
• Includes electronic transformer inside housing
• One FreeJack port for fixture connection

Features

• Suitable for ceiling or wall installation
• Vaulted canopy design for ceilings up to 45°
• Compatible with low-voltage lighting systems
• Includes electronic transformer compatible with incandescent dimmers (model dependent)
• Installation requires a minimum 6 cubic inch electrical box volume
• Designed for use with Tech Lighting FreeJack connectors
• Installation by qualified electrician recommended
