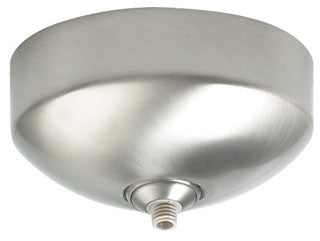

TECH LIGHTING 700FJSF4VW-LED Surface Canopy Lighting Solutions

The TECH LIGHTING 700FJSF4VW-LED surface canopy is designed for indoor dry locations, providing a reliable mounting solution for lighting fixtures. It mounts to a standard 4" junction box with a round plaster ring (provided by the electrician) and features an electronic transformer integrated within the canopy housing. This product is suitable for use by electrical distributors and switchgear suppliers looking to offer lighting solutions compatible with LED elements. It includes one FreeJack port for easy connection, suitable for ceiling or wall installations.

Specifications

• Model Number: 700FJSF4VW-LED
• Mounting: Standard 4" junction box with round plaster ring
• Transformer: Electronic transformer included, fits inside the junction box
• Voltage: 120V in / 12V out LED
• Finish: White
• Weight: 1.0 lb
• Certification: ETL listed for indoor dry locations
• Installation: Suitable for ceiling or wall mounting

Features

• Compatible with low-voltage electronic dimmers for LED elements
• Includes one FreeJack port for quick fixture connection
• Vaulted canopy design supports ceilings up to 45°
• Compact electronic transformer housed within a 2" high, 4.5" diameter dome
• Installation requires a minimum 6 cubic inch electrical box volume
• Installation by qualified electrician recommended with clear wiring instructions
