TECH LIGHTING 700FJSF4VW Surface Canopy Lighting Solutions

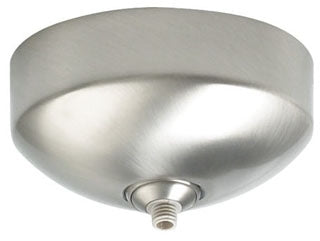

The TECH LIGHTING 700FJSF4VW is a surface canopy designed for mounting to a standard 4" junction box with a round plaster ring, suitable for ceiling or wall applications. This canopy features an electronic transformer housed inside a compact 2" high, 4.5" diameter vault-style enclosure, allowing installation on vaulted ceilings up to 45°. It includes one FreeJack port for easy fixture connection, making it a reliable component for electrical distributors and switchgear suppliers focusing on lighting solutions.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part Number: 700FJSF4VW
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Transformer: Electronic, integrated inside canopy housing
• Canopy Dimensions: 2" height, 4.5" diameter
• Ceiling Compatibility: Vaulted ceilings up to 45°
• FreeJack Ports: One, for ceiling or wall
• Voltage Options: 120V in / 12V out, 120V in / 24V out, 277V in / 12V out, LED compatible versions available
• Weight: 1.0 lb
• ETL Listed: Suitable for indoor dry locations at any height above finished floor

Features

• Compatible with low-voltage electronic dimmers for LED models (-LED, -LED277)
• Standard incandescent dimmer compatibility for non-LED models
• Electronic transformer included and housed within canopy for streamlined installation
• Supports single-port FreeJack connector system for fixture attachment
• Designed for professional installation by qualified electricians following local electrical codes
