TECH LIGHTING 700FJSF4VS024 Surface Canopy Lighting Solutions

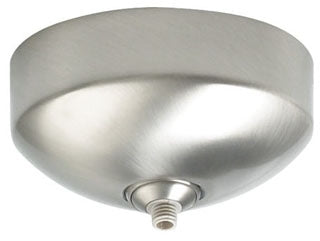

The TECH LIGHTING 700FJSF4VS024 is a surface canopy designed for indoor dry locations, suitable for mounting to a standard 4" junction box with a round plaster ring. It integrates an electronic transformer housed inside a 2" high, 4.5" diameter vaulted canopy, enabling 120V input with 24V output. This product is ideal for electrical distributors and switchgear suppliers looking for reliable, compact canopy solutions compatible with FreeJack lighting systems for ceiling or wall installation.

Specifications

• Model Number: 700FJSF4VS024
• Manufacturer: Tech Lighting
• Input Voltage: 120V
• Output Voltage: 24V
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Transformer: Electronic transformer included inside canopy housing
• Dimensions: 2" height, 4.5" diameter vaulted canopy
• Weight: 1.0 lb
• Finish: Satin Nickel
• Port: One FreeJack port for ceiling or wall
• Certification: ETL listed for indoor dry locations
• UPC: 884655030212

Features

• Vaulted canopy design suitable for ceilings up to 45°
• Compatible with low-voltage electronic dimmers for models ending in “-LED” or “-LED277”
• Supports standard incandescent dimmers for other model variants
• Includes electronic transformer fitting within the canopy for streamlined installation
• One FreeJack port enables easy connection with compatible lighting fixtures
• Installation requires qualified electrician following local electrical codes
