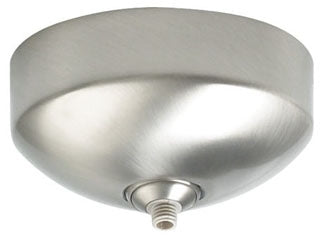

TECH LIGHTING 700FJSF4S-LED277 FJ-SURF CANOPY SN 277/12-LED Lighting Solutions

The TECH LIGHTING 700FJSF4S-LED277 is a surface canopy designed for indoor dry locations, suitable for mounting to a standard 4" junction box with a round plaster ring. This lighting solution integrates an electronic transformer inside a 2" high, 4.5" diameter housing and features one FreeJack port for ceiling or wall installation. Compatible with 277V input and 12V LED output, it is optimized for use with LED elements and supports dimming via low-voltage electronic dimmers, making it a reliable component for electrical distributors and switchgear suppliers focusing on wire and cable applications in lighting systems.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJSF4S-LED277
• Dimensions (W x H x L): 4.5 in x 2.3 in x 4.5 in
• Weight: 1.0000 lb
• Voltage: 277V in / 12V LED out
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Transformer: Electronic transformer included inside housing
• Port: One FreeJack port for ceiling or wall
• Location: Indoor dry locations only
• Certification: ETL listed

Features

• Surface canopy with a compact 2" high, 4.5" diameter housing
• Compatible with LED elements, supporting low-voltage electronic dimming
• Suitable for ceilings up to 45° with vaulted version option
• Easy installation with included electronic transformer and standard junction box compatibility
• Single FreeJack port for versatile ceiling or wall mounting
• ETL listed for safety and compliance with electrical codes
