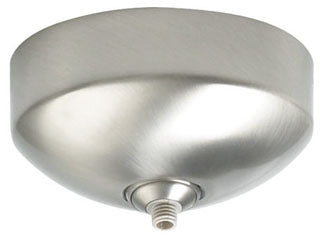

TECH LIGHTING 700FJSF4B024 Surface Canopy Lighting Solutions

The TECH LIGHTING 700FJSF4B024 is a surface canopy designed for mounting to a standard 4" junction box with a round plaster ring, suitable for indoor dry locations. It includes an electronic transformer housed within a 2" high, 4.5" diameter enclosure and features one FreeJack port for ceiling or wall installation. This product is ideal for electrical distributors and lighting solution providers seeking reliable wire and cable connection points integrated with switchgear components.

Specifications

• Manufacturer Part #: 700FJSF4B024
• Finish: Black
• Voltage: 120V input / 24V output
• Mounting: Standard 4" junction box with round plaster ring
• Transformer: Electronic transformer included, fits inside junction box
• Dimensions: 2" height, 4.5" diameter housing
• Weight: 1.0 lb
• Certifications: ETL listed for indoor dry locations
• UPC: 884655455367

Features

• Single FreeJack port for flexible ceiling or wall mounting
• Compatible with standard incandescent dimmers; LED compatibility varies by model suffix
• Vaulted version available for ceilings up to 45° (not applicable to this model)
• Includes electronic transformer within compact housing for streamlined installation
• Installation requires a minimum electrical box volume of 6 cubic inches
• Designed for use with Tech Lighting FreeJack system for modular lighting configurations
