TECH LIGHTING 700FJS4Z-LED277 FJ SQ CN 4 PORT BZ-LED 277/12 Multi-Port Canopy

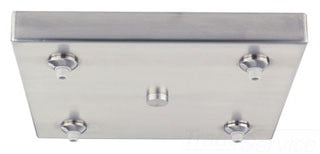

The TECH LIGHTING 700FJS4Z-LED277 is a 4-port square canopy designed for ceiling installation, providing a reliable electrical connection point for FreeJack lighting systems. This product is suitable for indoor dry locations and mounts to a standard 4" junction box with a round plaster ring, making it compatible with typical electrical distributor setups. It features integrated electronic transformers within an 11" by 11" housing, supporting 277V input and 12V output, optimized for LED lighting elements. Ideal for lighting solutions requiring multiple connection ports in a compact and robust design.

Specifications

• Product Weight: 5.8 lbs
• Voltage: 277V in / 12V out LED
• Housing Dimensions: 11" x 11"
• Number of Ports: 4 FreeJack ports
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Certification: ETL listed for indoor dry locations
• Compatibility: Compatible with LED elements
• Dimming: Dimmable with 277V low-voltage electronic dimmer

Features

• Electronic transformers integrated inside housing for efficient power conversion
• Four FreeJack ports enabling multiple fixture connections
• Compact square design suitable for ceiling mounting
• Supports LED lighting with a maximum output of 10 watts per port
• Installation includes grounding and wiring provisions compliant with local electrical codes
• Designed for use with Tech Lighting FreeJack systems
