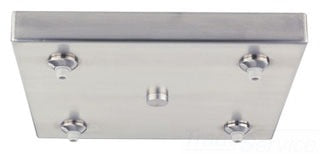

TECH LIGHTING 700FJS4Z FJ SQUARE CANOPY 4 PORT BRZ - Multi-Port Canopy Lighting Solution

The TECH LIGHTING 700FJS4Z FJ Square Canopy is a multi-port lighting canopy designed for ceiling mounting. It provides four FreeJack ports and incorporates electronic transformers within an 11" by 11" housing. This product is suitable for indoor dry locations and is ideal for electrical distributors and lighting solution providers requiring reliable wire and cable integration with switchgear components in commercial or residential lighting systems.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJS4Z
• Product Weight: 5.8 lbs
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Housing Dimensions: 11" x 11"
• Ports: Four FreeJack ports
• Voltage: 277V in / 12V out
• Finish: Antique Bronze
• Certification: ETL Listed for indoor dry locations
• Dimming Compatibility: Compatible with 277V incandescent dimmer; model is not LED compatible

Features

• Electronic transformers integrated inside the canopy housing
• Four-port configuration supports multiple fixture connections
• Designed for ceiling-only installation
• Mounting plate included for secure installation to electrical box
• Grounding provisions in compliance with local electrical codes
• Supports dimming with standard incandescent dimmers for non-LED models
