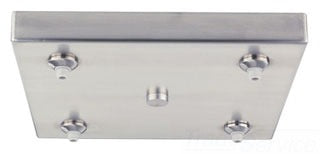

TECH LIGHTING 700FJS4W277 FJ SQ CANOPY 4 PORT WH 277/12 - Multi-Port Canopy Lighting Solution

The TECH LIGHTING 700FJS4W277 is a 4-port square canopy designed for ceiling installation, providing a reliable mounting solution for multiple FreeJack lighting fixtures. This product is intended for indoor dry locations and mounts to a standard 4" junction box with a round plaster ring, suitable for electrical distributors and lighting solution providers requiring versatile wire and cable management with integrated electronic transformers. It operates at 277V input with 12V output, supporting dimmable functionality compatible with 277V incandescent dimmers or low-voltage electronic dimmers for LED models.

Specifications

• Manufacturer: Tech Lighting
• Model Number: 700FJS4W277
• Product Weight: 5.8 lbs
• Voltage: 277V in / 12V out
• Number of Ports: 4 FreeJack ports
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Housing Dimensions: 11" x 11"
• Location: Indoor dry locations only
• Certification: ETL listed

Features

• Electronic transformers integrated inside the housing for efficient power management
• Compatible with LED elements when model ends with "-LED277" (dimmable with 277V low-voltage electronic dimmer)
• Standard models dimmable with 277V incandescent dimmer (non-LED compatible)
• Simple installation with mounting plate and screw system for secure attachment
• Grounding provisions in compliance with local electrical codes
• Four FreeJack ports allowing multiple fixture connections from a single canopy
