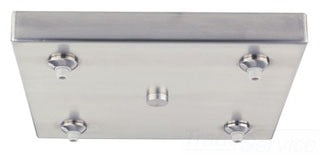

TECH LIGHTING 700FJS4W-LED277 FJ SQ CN 4 PORT WH-LED 277/12 - Multi-Port Canopy Lighting Solution

The TECH LIGHTING 700FJS4W-LED277 is a 4-port square canopy designed for ceiling mounting in indoor dry locations. It features integrated electronic transformers to provide 277V input with 12V output, compatible with LED lighting elements. This product is suitable for electrical distributors and lighting solutions providers seeking reliable wire and cable management with integrated transformer capabilities. It is ETL listed and intended for use with FreeJack lighting systems, supporting low-voltage electronic dimming for LED fixtures.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJS4W-LED277
• Finish: White
• Input Voltage: 277V in
• Output Voltage: 12V out
• Number of Ports: 4 FreeJack ports
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Housing Dimensions: 11" by 11"
• Product Weight: 5.8 lbs
• ETL Listed for indoor dry locations

Features

• Electronic transformers integrated inside the canopy housing
• Compatible with LED elements and dimmable with 277V low-voltage electronic dimmers
• Supports ceiling-only mounting applications
• FreeJack ports allow easy connection of multiple fixtures
• Designed for use in professional lighting installations requiring reliable power distribution
