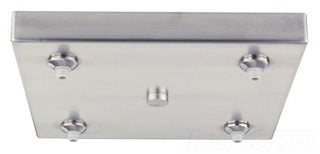

TECH LIGHTING 700FJS4S277 FJ SQ CANOPY 4 PORT SN 277/12 - Multi-Port Canopy Lighting Solution

The TECH LIGHTING 700FJS4S277 is a 4-port square canopy designed for ceiling mounting, providing a versatile lighting solution ideal for electrical distributors and lighting solutions providers. It features electronic transformers enclosed within an 11" by 11" housing and supports FreeJack ports for flexible fixture connections. This canopy is suitable for indoor dry locations and mounts to a standard 4" junction box with a round plaster ring, facilitating straightforward installation by licensed electricians. The model operates at 277 volts input with 12 volts output, making it compatible with specific low-voltage lighting systems and switchgear suppliers.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJS4S277
• Product Weight: 5.8 lbs
• Voltage: 277V in / 12V out
• Housing Dimensions: 11" x 11"
• Number of Ports: 4 FreeJack ports
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Certification: ETL listed for indoor dry locations

Features

• Electronic transformers integrated inside housing
• Compatible with low-voltage LED elements when specified with LED suffix models
• Dimmable with 277V incandescent or low-voltage electronic dimmers depending on model type
• Designed for ceiling-only installation
• Grounding provisions in accordance with local electrical codes
• Durable satin nickel finish
