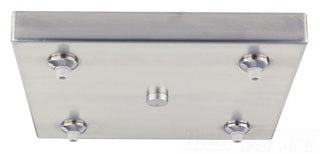

TECH LIGHTING 700FJS4S-LED277 FJ SQ CN 4 PORT SN-LED 277/12 - Multi-Port Lighting Canopy

The TECH LIGHTING 700FJS4S-LED277 is a 4-port square canopy designed for ceiling mounting, providing a versatile solution for wire and cable connections in lighting installations. This product is suitable for electrical distributors and switchgear suppliers seeking reliable components for indoor lighting solutions. It features integrated electronic transformers and is compatible with LED elements, operating at 277 volts input and 12 volts output.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJS4S-LED277
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Housing Dimensions: 11" by 11"
• Number of Ports: 4 FreeJack ports
• Voltage: 277V input / 12V output LED
• Weight: 5.8 lbs
• Certifications: ETL Listed for indoor dry locations
• Compatibility: Compatible with LED elements
• Dimming: Dimmable with 277V low-voltage electronic dimmer

Features

• Electronic transformers integrated inside the housing
• Designed for ceiling use only
• ETL listed and approved for use at any height above finished floor
• Compatible with low-voltage electronic dimmers for LED models
• Simple installation with mounting plate and FreeJack fixture connectors
• Grounding provisions in accordance with local electrical codes
