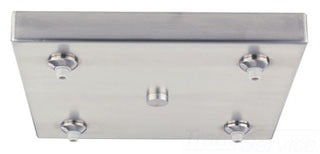

TECH LIGHTING 700FJS4S-LED FJ Square Canopy 4 Port Sink LED

The TECH LIGHTING 700FJS4S-LED is a 4-port square canopy designed for ceiling mounting, providing a reliable electrical connection point for FreeJack lighting systems. It is suitable for indoor dry locations and mounts to a standard 4" junction box with a round plaster ring (provided by the electrician). This canopy incorporates electronic transformers within an 11" by 11" housing and supports LED elements with dimmable functionality, making it a practical choice for electrical distributors and lighting solutions providers specializing in wire and cable and switchgear components.

Specifications

• Manufacturer: Tech Lighting
• Model Number: 700FJS4S-LED
• Mounting: Standard 4" junction box with round plaster ring
• Housing Dimensions: 11" x 11"
• Ports: Four FreeJack ports for ceiling only
• Voltage: 277V input / 12V output LED
• Weight: 5.8 lbs
• Certification: ETL listed for indoor dry locations

Features

• Compatible with LED elements; dimmable with 277V low-voltage electronic dimmer
• Electronic transformers integrated inside housing
• Mounting plate included for secure installation
• Approved for use at any height above finished floor
• Minimum electrical box volume required: 6 cubic inches (98 cubic centimeters)
• Color/Finish: Satin Nickel
