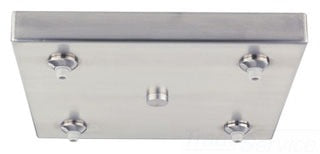

TECH LIGHTING 700FJS4S FJ SQUARE CANOPY 4 PORT SNK - Multi-Port Canopy Lighting Solution

The TECH LIGHTING 700FJS4S is a 4-port square canopy designed for ceiling mounting, providing a compact and efficient solution for wire and cable distribution in lighting applications. It mounts to a standard 4" junction box with a round plaster ring (provided by the electrician) and features electronic transformers housed inside an 11" by 11" enclosure. This product is suitable for indoor dry locations and is ideal for electrical distributors and switchgear suppliers seeking reliable multi-port canopies for lighting solutions.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJS4S
• Mounting: Standard 4" junction box with round plaster ring
• Housing Dimensions: 11" x 11"
• Number of Ports: 4 FreeJack ports
• Weight: 5.8 lbs
• Voltage Options: 277V in / 12V out
• Finish: Satin Nickel
• Listings: ETL listed for indoor dry locations

Features

• Electronic transformers integrated inside the canopy housing
• Compatible with LED elements on LED and LED277 models
• Dimmable with 277V incandescent or low-voltage electronic dimmers depending on model
• Simple installation with mounting plate and four screws
• Grounding provisions compliant with local electrical codes
• Designed exclusively for ceiling installation
