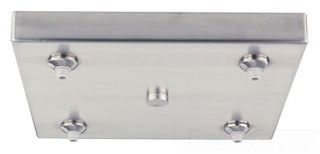

TECH LIGHTING 700FJS4C-LED277 FJ SQ CN 4 PORT CH-LED 277/12 Multi-Port Canopy

The TECH LIGHTING 700FJS4C-LED277 is a 4-port square canopy designed for ceiling mounting, providing a reliable electrical connection point for multiple FreeJack lighting fixtures. It integrates electronic transformers within an 11" by 11" housing, converting 277V input to 12V output, compatible with LED elements. This product is suitable for indoor dry locations and is ETL listed, making it a dependable choice for electrical distributors and lighting solution providers requiring wire and cable management with integrated transformer support.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJS4C-LED277
• Voltage: 277V in / 12V out LED
• Number of Ports: 4 FreeJack ports
• Housing Dimensions: 11" x 11"
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Product Weight: 5.8 lbs
• Certification: ETL Listed for indoor dry locations
• Compatibility: Compatible with LED elements

Features

• Electronic transformers integrated inside housing for efficient voltage conversion
• Dimmable with 277V low-voltage electronic dimmer for LED models
• Designed for ceiling-only installation
• Includes four FreeJack ports for flexible multi-fixture connections
• Mounting plate with grounding screw ensures compliance with local electrical codes
• Compatible with LED lighting elements with a maximum output of 10 watts per port
• Simple installation with mounting plate slots aligning to electrical box holes
