TECH LIGHTING 700FJS4C-LED FJ SQUARE CNPY 4 PORT CHR-LED Canopy Lighting Solutions

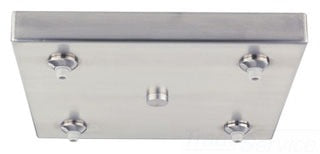

The TECH LIGHTING 700FJS4C-LED is a 4-port square canopy designed for ceiling mounting, providing a reliable electrical connection point for multiple lighting fixtures. It is intended for indoor dry locations and mounts to a standard 4" junction box with a round plaster ring, suitable for use by electrical distributors and switchgear suppliers integrating lighting solutions and wire and cable systems. The canopy incorporates electronic transformers housed within an 11" by 11" square housing, supporting LED elements with 120V or 277V input and 12V output.

Specifications

• Product Weight: 5.8 lbs
• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJS4C-LED
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Housing Dimensions: 11" x 11"
• Ports: Four FreeJack ports for ceiling only
• Voltage: 120V in / 12V out LED or 277V in / 12V out LED
• Compatibility: Compatible with LED elements
• Certifications: ETL listed for indoor dry locations

Features

• Electronic transformers integrated inside housing for efficient power conversion
• Dimmable with low-voltage electronic dimmers for LED models
• Supports multiple LED fixtures via four FreeJack ports
• Easy installation with mounting plate and standard junction box interface
• Grounding provisions in compliance with local electrical codes
