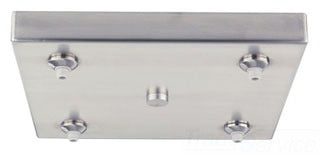

TECH LIGHTING 700FJS4B277 FJ SQ CANOPY 4 PORT BK 277/12 - Multi-Port Lighting Canopy

The TECH LIGHTING 700FJS4B277 is a 4-port square canopy designed for ceiling installation in indoor dry locations. It is engineered to mount to a standard 4" junction box with a round plaster ring, providing a secure housing for electronic transformers. This canopy supports FreeJack ports, making it suitable for lighting solutions requiring multiple fixture connections. It operates at 277V input with 12V output, ideal for professional electrical distributors and switchgear suppliers managing wire and cable distribution in commercial lighting applications.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJS4B277
• Voltage: 277V in / 12V out
• Ports: Four FreeJack ports
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Housing Dimensions: 11" by 11"
• Product Weight: 5.8 lbs
• Location Rating: Indoor dry locations only
• Certification: ETL listed

Features

• Electronic transformers housed internally for reliable power conversion
• Compatible with LED elements when model ends with “-LED” or “-LED277” (not applicable to this exact model)
• Dimmable with 277V incandescent dimmer
• Supports ceiling-only installation
• Includes mounting plate for secure electrical box attachment
• Grounding provisions comply with local electrical codes
