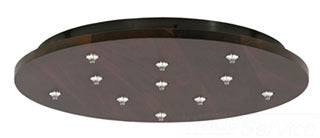

TECH LIGHTING 700FJRD11WS Round Multi-Port Canopy Lighting Solutions

The TECH LIGHTING 700FJRD11WS is an 11-port round multi-port canopy designed for dry location installations. It supports both low-voltage FreeJack and line-voltage PowerJack pendants, making it suitable for versatile lighting configurations. This canopy is intended for use by electrical distributors and switchgear suppliers involved in lighting solutions and wire and cable installations. It mounts to a standard 4" junction box with a round plaster ring and includes drywall anchors for additional support.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part Number: 700FJRD11WS
• UPC: 884655143844
• Product Weight: 29 lbs
• Shape: Round
• Number of Ports: 11 (5 low-voltage FreeJack ports, 6 line-voltage PowerJack ports)
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Finish: Walnut wood
• Dimensions: Approximately 24" diameter
• Location Suitability: Dry locations only
• Dimming Compatibility: Models ending in “-LED” dimmable with low-voltage electronic dimmer; others dimmable with standard incandescent dimmer

Features

• Multi-port canopy supports both low-voltage and line-voltage pendant connections
• Includes electronic transformers for all low-voltage ports
• Mounts securely with drywall anchors and screws for stable installation
• Compatible with a wide range of FreeJack and PowerJack pendant fixtures
• Safety cable brackets included for secure canopy installation
• Wood canopy requires minimum 12-inch clearance from heat sources to prevent damage
• ETL listed for safety compliance
