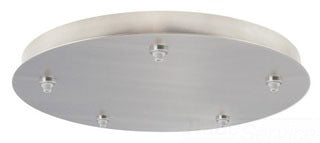

TECH LIGHTING 700FJR5B277 FJ RD CANOPY 5 PORT BK 277/12 - Multi-Port Round Canopy

The Tech Lighting 700FJR5B277 is a 5-port round canopy designed for ceiling mounting, providing a reliable electrical connection point for multiple FreeJack fixtures. This canopy is suitable for use by electrical distributors and lighting solutions providers requiring durable wire and cable management components. It operates with a 277V input and 12V output, featuring integrated electronic transformers housed within a 16-inch diameter metal enclosure. This product supports dimming with 277V incandescent dimmers and is intended for indoor dry locations.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part Number: 700FJR5B277
• Product Weight: 6 lbs
• Voltage: 277V in / 12V out
• Number of Ports: 5 FreeJack ports
• Housing Diameter: 16 inches
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Location: Indoor dry locations only
• Certifications: ETL listed

Features

• Electronic transformers integrated inside the canopy housing
• Compatible with 277V incandescent dimmers for dimming control
• Supports multiple FreeJack fixture connections for flexible lighting configurations
• Robust metal construction suitable for ceiling installation
• Easy installation with removable mounting plate and included mounting hardware
• ETL listed for safety and compliance in indoor dry environments
