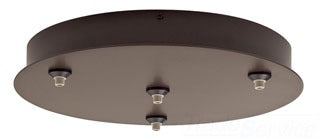

TECH LIGHTING 700FJR4S277 FJ RD CANOPY 4 PORT SN 277/12 - Multi-Port Lighting Canopy

The TECH LIGHTING 700FJR4S277 is a 4-port round canopy designed for ceiling mounting in indoor dry locations. It serves as a multi-port electrical distributor with integrated electronic transformers, converting 277V input to 12V output. This canopy is suitable for use in lighting solutions requiring multiple FreeJack ports, providing reliable power distribution for low-voltage fixtures. It is compatible with LED elements when specified and is intended for use by professional electricians with standard 4" junction boxes.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJR4S277
• Product Weight: 6.5 lbs
• Voltage: 277V in / 12V out
• Ports: 4 FreeJack ports
• Finish: Satin Nickel
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Housing Diameter: 12 inches
• Location: Indoor dry locations only
• Certification: ETL listed

Features

• Electronic transformers integrated inside the canopy housing
• Compatible with LED elements when model ends with “-LED277”
• Dimmable with 277V incandescent dimmer or 277V low-voltage electronic dimmer for LED models
• Designed for ceiling mounting only
• Provides multiple power ports for flexible lighting configurations
• Easy installation with removable mounting plate and standard electrical box compatibility
• Grounding provisions in accordance with local electrical codes
