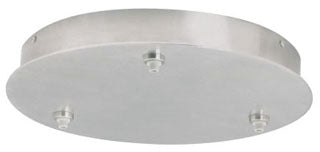

TECH LIGHTING 700FJR3B-LED FJ ROUND CANOPY 3 PORT BK-LED Lighting Solutions

The TECH LIGHTING 700FJR3B-LED is a 3-port round canopy designed for ceiling mounting, suitable for indoor dry locations. It integrates electronic transformers within a 12-inch diameter housing, facilitating efficient power distribution for multiple lighting fixtures. This product is ideal for electrical distributors and switchgear suppliers focusing on wire and cable management for lighting installations.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJR3B-LED
• Product Weight: 6.0000 lbs
• UPC: 884655044097
• Mounting: Standard 4" junction box with round plaster ring (provided by electrician)
• Housing Diameter: 12 inches
• Ports: 3 FreeJack ports
• Voltage: 120V in / 12V out LED
• Compatibility: Compatible with LED elements
• Certifications: ETL listed for indoor dry locations
• Dimming: Dimmable with low-voltage electronic dimmer

Features

• Electronic transformers integrated inside housing
• Compatible with LED lighting elements with a maximum output of 10 watts per port
• Designed for ceiling-only installation
• ETL listed, suitable for use at any height above finished floor
• Easy installation with mounting plate and FreeJack port connectors
• Supports dimming with low-voltage electronic dimmers for LED versions
