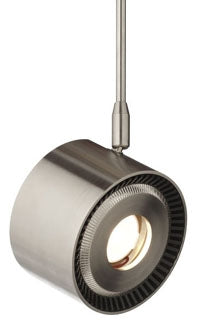

TECH LIGHTING 700FJISO9305003S-LED FJ-ISO HD 930K 503IN SN-LED LED Directional Head

The TECH LIGHTING 700FJISO9305003S-LED is a low-voltage, directional LED head designed for precise lighting control in indoor dry locations. It is suitable for use by electrical distributors and lighting solutions providers requiring efficient, upgradeable LED lighting components. The fixture features a machined aluminum housing with an extruded aluminum heat sink, ensuring effective thermal management and durability. Its compact design integrates seamlessly into wire and cable systems or switchgear supplier applications where directional lighting is essential.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• Color Rendering Index (CRI): 80+
• Beam Spreads: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Warranty: 5 years
• Dimensions (W x H x L): 2.8 in x 3.6 in x 3.6 in
• Product Weight: 1.58 lbs
• ETL Listed for indoor dry locations

Features

• Directional LED head with 360° rotation and 90° pivot for precise beam control
• Heat sink integrated with fixture to minimize waste at lamp module end-of-life
• Easily field-replaceable and upgradeable LED module with solderless connector
• Integrated lens holder accommodates one lens or louver (sold separately)
• Machined aluminum housing and extruded aluminum heat sink for durability and thermal management
• Dimmable to 10% with compatible low-voltage dimmers
• Compact design suitable for use in lighting systems requiring efficient directional illumination
