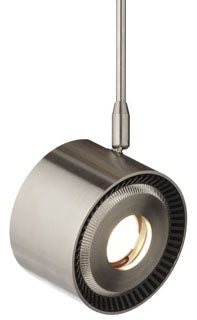

TECH LIGHTING 700FJISO8305006S-LED FJ-ISO HD 830K 506IN SN-LED Directional LED Head

The TECH LIGHTING 700FJISO8305006S-LED is a 16-watt directional LED head designed for precise lighting applications. It features a machined aluminum housing with an extruded aluminum heat sink, providing efficient thermal management and durability. This product is suitable for indoor dry locations and is an ideal component for electrical distributors and lighting solutions providers seeking high-performance LED fixtures. The LED module is field-replaceable and upgradeable thanks to a solderless connector, minimizing waste by retaining the heat sink with the fixture. The head offers 360° rotation and 90° pivot for versatile beam direction, and it includes an integrated lens holder compatible with optional lenses or louvers (sold separately). It is dimmable to 10% with compatible low-voltage electronic or magnetic dimmers based on the transformer.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJISO8305006S-LED
• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Color Rendering Index (CRI): 80+
• Beam Spread Options: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming: 10% minimum with low-voltage electronic or magnetic dimmers
• Warranty: 5 years
• Dimensions: 3.6 in height x 2.8 in width x 3.6 in length
• Product Weight: 1.58 lbs
• ETL Listed for indoor dry locations

Features

• Directional LED head with 360° rotation and 90° pivot for precise beam control
• Machined aluminum housing with extruded aluminum heat sink for optimal heat dissipation
• Field-replaceable and upgradeable LED module with solderless connector
• Integrated lens holder accommodates one lens or louver for beam shaping (accessories sold separately)
• Low-voltage dimmable to 10% for energy-efficient lighting control
• Heat sink remains with fixture to minimize waste at end of lamp module life
• Compact size suitable for various architectural and commercial lighting applications
