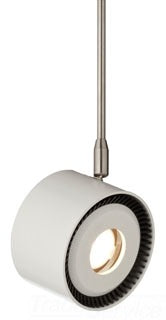

TECH LIGHTING 700FJISO8302003W-LED FJ-ISO HD 830K 203IN WH-LED LED Lighting Head

This product is a 16 watt, 850+ lumen directional LED head designed for precise lighting applications. Manufactured by Tech Lighting, it features a machined aluminum housing with an extruded aluminum heat sink for effective thermal management. The LED module is easily field-replaceable and upgradeable via a solderless connector, minimizing waste by retaining the heat sink with the fixture. The head rotates 360° and pivots 90°, allowing flexible beam direction. It includes an integrated lens holder for one lens or louver (sold separately) and is dimmable to 10% with compatible low-voltage electronic or magnetic dimmers. Suitable for indoor dry locations, this lighting solution is ideal for electrical distributors and lighting solutions providers focusing on wire and cable and switchgear compatibility.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• CRI: 80+
• Beam Spreads: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming: 10%
• Warranty: 5 years
• Dimensions: Width 2.8 in, Height 3.6 in, Length 3.6 in
• Product Weight: 1.58 lbs
• Manufacturer Part #: 700FJISO8302003W-LED
• UPC: 884655325875

Features

• Directional LED head with 360° rotation and 90° pivot for precise beam control
• Machined aluminum housing and extruded aluminum heat sink for durability and heat dissipation
• Field-replaceable and upgradeable LED module with solderless connector
• Integrated lens holder supports one lens or louver accessory (sold separately)
• Compatible with low-voltage electronic or magnetic dimmers
• ETL listed for indoor dry locations
