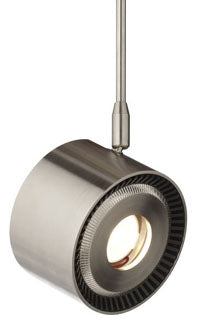

TECH LIGHTING 700FJISO8275012S-LED FJ-ISO HD 827K 5012IN SN-LED LED Lighting Head

The TECH LIGHTING 700FJISO8275012S-LED is a low-voltage, directional LED lighting head designed for precise beam control in architectural and commercial lighting applications. It is suitable for integration with lighting solutions offered by electrical distributors and switchgear suppliers. The fixture features a field-replaceable LED module with a solderless connector, enabling easy upgrades and maintenance. Its compact design and adjustable beam direction make it ideal for wire and cable systems requiring flexible lighting configurations.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJISO8275012S-LED
• Power Consumption: 16 watts
• Light Output: 850+ lumens
• Color Temperature: 3000 K
• Color Rendering Index (CRI): 80+
• Beam Spread: 20°, 30°, 50°
• Dimensions (W x H x L): 2.8 in x 3.6 in x 3.6 in
• Weight: 1.58 lbs
• Lifetime: 50,000 hours to L70
• Dimming: 10% with low-voltage electronic or magnetic dimmer (dependent on transformer)
• Warranty: 5 years
• ETL listed for indoor dry locations

Features

• Directional LED head with 360° rotation and 90° pivot for precise beam aiming
• Machined aluminum housing with integrated extruded aluminum heat sink for thermal management
• Field-replaceable and upgradeable LED module with solderless connector
• Heat sink remains with fixture to minimize waste at lamp module end-of-life
• Integrated lens holder accommodates one lens or louver accessory (sold separately)
• Dimmable to 10% for flexible lighting control
• Compact size suitable for various architectural lighting installations
