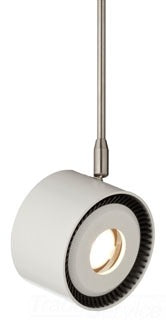

TECH LIGHTING 700FJISO8275006W-LED FJ-ISO HD 827K 506IN WH-LED LED Lighting Head

The TECH LIGHTING 700FJISO8275006W-LED is a 16-watt directional LED lighting head designed for precision beam control in architectural and commercial lighting applications. Ideal for electrical distributors and lighting solutions providers, this fixture offers high lumen output and versatile beam spread options, making it suitable for integration with wire and cable systems and switchgear setups requiring efficient, low-voltage LED illumination.

Specifications

• Manufacturer: Tech Lighting
• Manufacturer Part #: 700FJISO8275006W-LED
• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 800+ lumens
• Color Rendering Index (CRI): 80+
• Beam Spreads: 20°, 30°, 50°
• Product Dimensions (W x H x L): 2.8 in x 3.6 in x 3.6 in
• Product Weight: 1.58 lbs
• Dimming: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Life: 50,000 hours to L70
• Warranty: 5 years
• ETL Listed for indoor dry locations

Features

• Directional LED head with 360° rotation and 90° pivot for precise beam aiming
• Machined aluminum housing with extruded aluminum heat sink for effective thermal management
• Solderless connector allows easy field replacement and upgrades of the LED module
• Heat sink remains with fixture to minimize waste at end of lamp module life
• Integrated lens holder accommodates one lens or louver (sold separately) for beam control customization
• Two-tone finish providing a modern industrial aesthetic
• Dimmable to 10% for flexible lighting control
