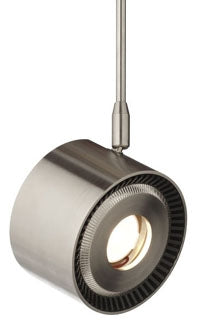

TECH LIGHTING 700FJISO8275006S-LED FJ-ISO HD 827K 506IN SN-LED LED Lighting Head

The TECH LIGHTING 700FJISO8275006S-LED is a precision-engineered 16-watt directional LED head designed for advanced lighting solutions. Ideal for electrical distributors and switchgear suppliers, this lighting component offers adjustable beam direction with 360° rotation and 90° pivot, making it suitable for targeted illumination applications. It integrates seamlessly with wire and cable systems in indoor dry locations, providing efficient and upgradeable LED technology for commercial and architectural lighting projects.

Specifications

• Power Consumption: 13 watts (LED), 3 watts (Integrated Driver)
• Color Temperature: 3000 K
• Output: 850+ lumens
• Efficiency: 50+ lumens per watt
• Color Rendering Index (CRI): 80+
• Beam Spread Options: 20°, 30°, 50°
• Life: 50,000 hours to L70
• Dimming Capability: 10% with low-voltage electronic or magnetic dimmer (based on transformer)
• Product Dimensions: Width 2.8 in, Height 3.6 in, Length 3.6 in
• Product Weight: 1.58 lbs
• Warranty: 5 years
• ETL Listed for indoor dry locations

Features

• Machined aluminum housing with extruded aluminum heat sink for effective thermal management
• Easily field-replaceable and upgradeable LED module via solderless connector
• Heat sink remains with fixture to minimize waste at lamp module end-of-life
• Integrated lens holder accommodates one lens or louver accessory (sold separately)
• Two-tone satin nickel finish providing a modern industrial aesthetic
• Compatible with low-voltage electronic or magnetic dimmers for flexible lighting control
• Designed for use with Tech Lighting 700 system Freejack mounting options
