TECH LIGHTING 700FJHEL4024Z-LED FJ-HELIOS 40 24 IN BZ-LED LED Directional Lighting Head

The TECH LIGHTING 700FJHEL4024Z-LED FJ-HELIOS is a 6 watt directional LED head designed for precision lighting applications. Suitable for indoor dry locations, this lighting component is ideal for use by electrical distributors and lighting solutions providers focusing on customizable LED fixtures. Its field-replaceable LED module and adjustable beam direction make it compatible with various wire and cable setups and switchgear systems requiring efficient, low-voltage LED lighting.

Specifications

• Power Consumption: 6 watts
• Color Temperature: 3000°K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lm/W
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° or 40°
• Candle Power: 25° - 748; 40° - 550
• Dimming: Dimmable to 10% with low-voltage electronic or magnetic dimmers
• Dimensions: Length 2.2" (55 mm)
• Weight: 0.29 lbs
• Voltage: 12 volts
• ETL Listed for indoor dry locations
• Warranty: 5 years

Features

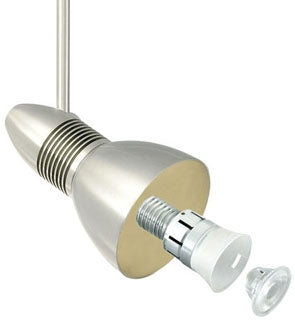

• Field-replaceable LED module with screw-in base for easy maintenance
• Aluminum heat sink for effective thermal management
• 360° rotation and 260° pivot for precise beam direction
• Compatible with a wide range of accessory styles and finishes (sold separately)
• Includes 4" round flush canopy for mounting
• Minimizes waste by retaining heat sink with fixture after lamp module replacement
