TECH LIGHTING 700FJHEL4018S-LED FJ-HELIOS 40 18 IN SN-LED LED Lighting Solution

The TECH LIGHTING 700FJHEL4018S-LED FJ-HELIOS is a 6-watt directional LED head designed for precision lighting applications. This lighting component is suitable for indoor dry locations and is ideal for use by electrical distributors and switchgear suppliers looking to provide advanced lighting solutions. The LED head features a field-replaceable lamp module with a screw-in base, an aluminum heat sink for thermal management, and offers adjustable beam direction with 360° rotation and 260° pivot capability. Compatible with various accessory styles and colors, it supports customization for wire and cable lighting systems and track lighting.

Specifications

• Power Consumption: 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lm/W
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Center Beam Candle Power: 25° - 748; 40° - 550
• Dimming: Dimmable to 10% with low-voltage electronic or magnetic dimmer
• Beam Spread Options: 25° and 40°
• Warranty: 5 years
• Dimensions: Length 18 inches, Head length 2.2 inches (55 mm)
• Weight: 0.29 lbs
• ETL Listed for indoor dry locations

Features

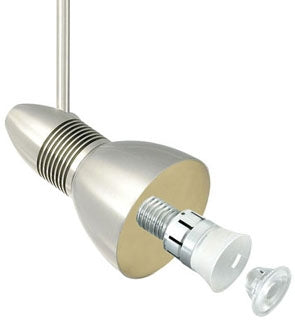

• Field-replaceable LED lamp module included, minimizing waste and maintenance
• Aluminum heat sink ensures effective thermal management
• 360° rotation and 260° pivot for precise beam direction
• Compatible with a wide range of accessory styles and colors (sold separately)
• Includes 4" round flush canopy for easy installation
• Low-voltage operation at 12 volts, suitable for use in advanced lighting systems
