TECH LIGHTING 700FJHEL4012Z-LED FJ-HELIOS 40 12 IN BZ-LED LED Directional Head

The TECH LIGHTING 700FJHEL4012Z-LED FJ-HELIOS is a 6-watt directional LED head designed for precise lighting applications. Ideal for electrical distributors and lighting solutions providers, this fixture offers a field-replaceable LED module with a screw-in base, ensuring easy maintenance and minimizing waste. The head rotates 360° and pivots 260°, allowing versatile beam direction. Suitable for indoor dry locations, it integrates seamlessly with wire and cable systems and switchgear setups requiring low-voltage electronic or magnetic dimming.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000 K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lm/W
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° and 40°
• Candle Power: 25° - 748; 40° - 550
• Dimming: 10% minimum with low-voltage electronic or magnetic dimmer
• Product Weight: 0.29 lbs
• Product Dimensions: Length 2.2" (55 mm)
• ETL Listed for indoor dry locations
• Manufacturer Part #: 700FJHEL4012Z-LED

Features

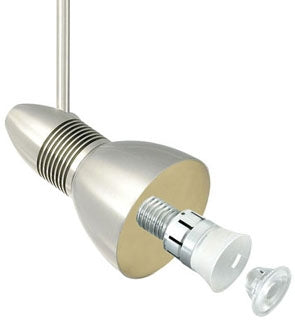

• Field-replaceable LED lamp module included
• Aluminum heat sink for thermal management
• 360° rotation and 260° pivot for flexible beam aiming
• Compatible with a variety of accessory styles and colors (sold separately)
• Dimmable to 10% for energy-efficient lighting control
• Includes 4" round flush canopy
• Minimizes waste by retaining heat sink with fixture at lamp module end of life
