TECH LIGHTING 700FJHEL4003Z-LED FJ-HELIOS 40 03 IN BZ-LED LED Lighting Head

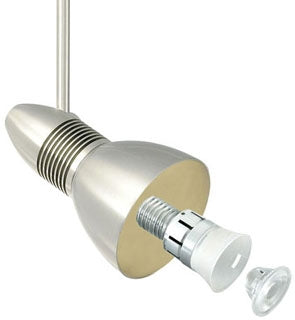

The TECH LIGHTING 700FJHEL4003Z-LED FJ-HELIOS is a 6-watt directional LED head designed for precision lighting applications. Suitable for indoor dry locations, this LED head is ideal for use in lighting solutions requiring adjustable beam direction. It features a field-replaceable LED lamp module with a screw-in base, integrated aluminum heat sink for thermal management, and compatibility with various accessories to customize lighting effects. The head rotates 360° and pivots 260° for flexible beam control, making it suitable for electrical distributors and switchgear suppliers focusing on advanced wire and cable lighting systems.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Center Beam Candle Power: 25° - 748; 40° - 550
• Dimming: 10% with low-voltage electronic or magnetic dimmer
• Warranty: 5 years
• Product Weight: 0.29 lbs
• Dimensions: Length 3 inches (FJ-HELIOS 40 03 model)
• Finish: Antique Bronze

Features

• Field-replaceable LED lamp module included
• Aluminum heat sink for efficient thermal management
• 360° rotation and 260° pivot for precise beam direction
• Compatible with a range of accessory lenses and louvers (sold separately)
• Dimmable to 10% using compatible low-voltage dimmers
• ETL listed for indoor dry locations
