TECH LIGHTING 700FJHEL2524Z-LED FJ-HELIOS 25 24 IN BZ-LED LED Directional Head

The TECH LIGHTING 700FJHEL2524Z-LED FJ-HELIOS is a 6-watt directional LED head designed for precise beam control in lighting solutions. It is suitable for use in indoor dry locations and integrates seamlessly with low-voltage lighting systems. This LED head is ideal for electrical distributors and switchgear suppliers focusing on customizable wire and cable lighting applications where directional illumination is required.

Specifications

• Power Consumption: Initial 6 watts
• Color Temperature: 3000° K
• Lumens: 350 net lumens
• Lumens per Watt: 55 lms/watt
• Color Rendering Index (CRI): >85
• Rated Average Life: >30,000 hours to L70
• Beam Spread Options: 25° and 40°
• Candle Power: 25° - 748; 40° - 550
• Dimming: Dimmable to 10% with low-voltage electronic or magnetic dimmer
• Warranty: 5 years
• Product Weight: 0.29 lbs
• ETL Listed for indoor dry locations

Features

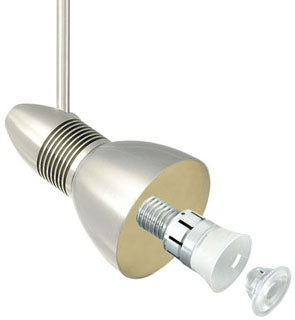

• Field-replaceable LED lamp module with screw-in base for easy maintenance
• Aluminum heat sink for effective thermal management
• Head rotates 360° and pivots 260° for precise beam direction
• Compatible with a variety of accessory styles and colors (sold separately) for custom LED fixture configurations
• Lenses and louvers usable only with Round Glass Shield and Tinkerbell with Integral Lens Holder accessory
• Includes 4" round flush canopy
